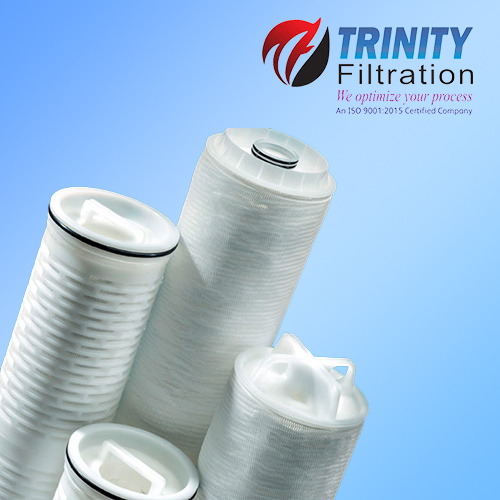

Radial pleat cartridges delivering absolute filtration at high flow rates.
Trinity High Flow Cartridges address one of the critical needs of the industry for absolute filtration at high flow rates. These cartridges have a radial pleat that maximizes the effective surface area & supports high flow rates. Radial pleat design also provides absolute filtration even at high flow rates.
| Media | Polypropylene, Glass Micro Fiber |
| Support & Drainage Layer | Polypropylene |
| Inner Core & End Caps | Polypropylene |
| Gaskets & O-rings | Silicone, Buna N, EPDM, Viton |
| Length | 10, 20, 40 & 60 inches |
| Outside Diameter | 6.5 inches (165 mm) |
| Inside Diameter | 3 inches (76 mm) |
| Maximum Operating Temperature | 80°C |
| Recommended Change-out DP | 35 PSID |
| Maximum Differential Pressure | 50 PSID |
