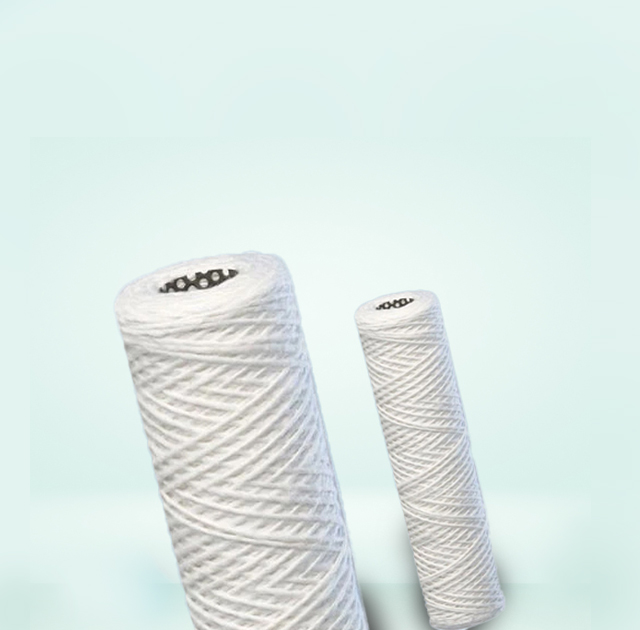

TRINITY Micro-String Series BLANKET MEDIA Filter cartridge is a major innovation in blanketed filter technology. It combines an enhanced open wind process with an internal media blanket. This provides superior flow rates, greater filtration efficiency, and consistent filter performance from batch to batch
Features & Benefits:
- High dirt holding capacity
- Graded density construction
- No media migration
- Low extractable levels
- Suitable for wide range of applications
- Higher filtration efficiency at the selected rating
- Low pressure drop and Longer Service Life
- Cost effective filtration
- Easy to install and remove
- Ensures process and system compatibility
- Reduces filter change-outs
- Suitable for all Standard Size filter housings
Filter Specification :
| Media |
Polypropylene, Cotton media blanket |
| Core |
Polypropylene/ SS 304 / SS 316 |
| Removal Ratings |
0.5, 1, 3, 5, 10, 25, 50, 100 micron |
Dimensions and Operating Condition :
| Nominal Lengths |
10, 20, 30, 40 inches |
| Diameter: ID/OD |
1” (25.4 mm) / 2.5” (63 mm) |
| End connections |
DOE (standard) |
| Max operating temperature |
80OC (PP) /120 OC (Cotton) |
| Max Change Out Differential Pressure |
50 PSID |
| Recommended Change out differential pressure |
35 PSID |
Applications
- Pre RO filtration
- Electronics & electroplating
- Paints and inks
- Edible Oil
- Pharmaceutical Pre Filtration
- Photographic chemicals
