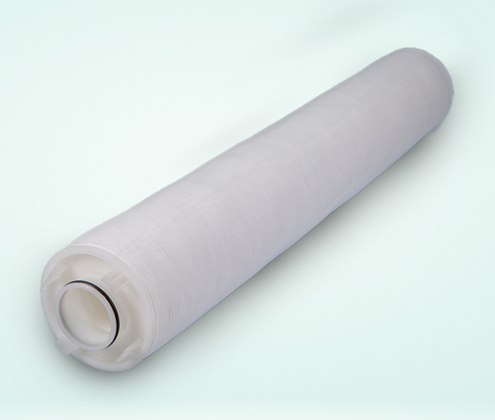

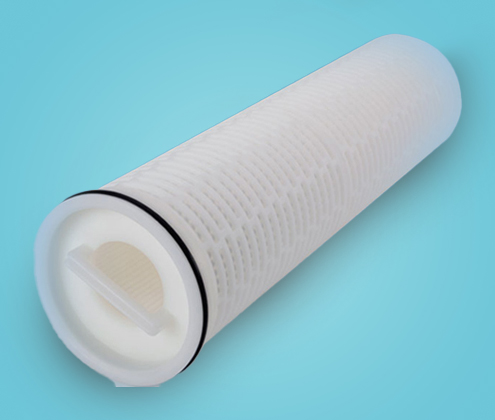

Trinity High Flow Cartridges address one of the critical needs of the industry for absolute filtration at high flow rates. These cartridges consist of a radial pleat which maximizes the filtration area and also supports higher flow rates. Trinity High Flow Filter Cartridges are a direct replacement to the Pall Ultipleat® and 3M Cuno® High-Flow Systems and are available in various end configurations to suit individual needs.
Features & Benefits :
- High flow capacity-up to 1800 LPM per cartridge
- Operator friendly design
- 'O' Ring type sealing arrangement for positive sealing

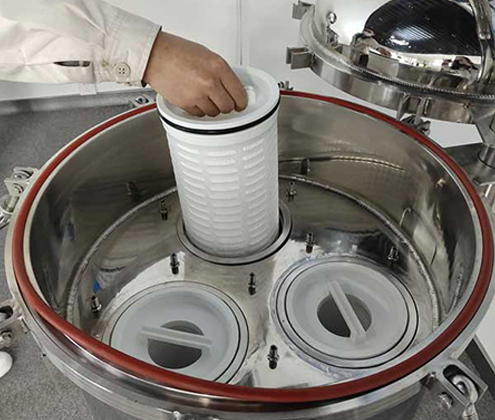

- Twist & lock arrangement for easy mounting of the cartridge
- Absolute rated Media
- Compact Design
- CFR 21 listed material used
Filter Specification:
| Media |
Polypropylene (PP) |
| Support & drainage Layer |
Polypropylene (PP) |
| Inner Core |
Polypropylene (PP) |
| Cage |
Polypropylene (PP) |
| End Caps |
Polypropylene (PP) |
| Removal Ratings |
0.5, 1, 2, 5, 10, 25, 40, 70 micron |
| O Rings / Gaskets(for SOE) |
Buna N, EPDM, Silicone, Viton |
Dimensions
| Nominal Lengths |
20, 40 & 60 inches |
| Diameter: ID/OD |
3” (76 mm) / 6.5” (165 mm) |
| End connections |
DOE (standard) / SOE (optional) |
| Max operating temperature |
80OC |
| Max Change Out Differential Pressure |
50 PSID (3.5 bar) |
| Recommended Change out differential pressure |
35 PSID (2.5 bar) |
Applications :
- Amine Sweetening
- DI Water
- Coolant filtration
- Fine Chemicals
- Beverage Filtration
- RO pre filtration
- Pharmaceutical pre filtration
- Pre-filter for ultrapure water
