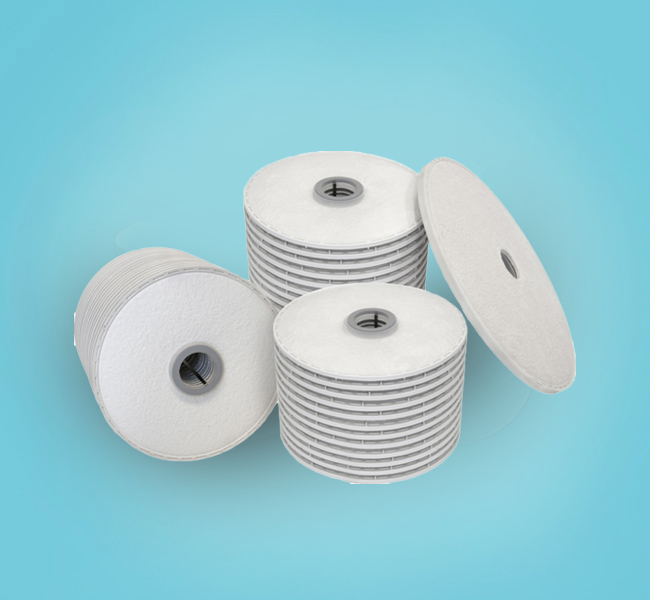

TRINITY Lenticular positively Charged Cellulose depth filters are specifically formulated to meet the performance demands of biopharmaceutical and biotech applications. The filter media utilize mechanical and electro-kinetic adsorptive capture mechanisms to remove particles, microorganisms, colloids, and pyrogen from critical process streams.

Trinity can provide on-site trial assistance to validate the performance of these filters in new processes and applications. The Pharmaceutical Grade filter modules are manufactured to procedures described in a Drug Master File (DMF) on record at the National Center for Drugs and Biologics.

Application:
  • Antibiotics
  • Blood Products
  • Large Volume parenterals
  • Cell Separation
  • Cough Syrups
  • Pre filtration of Sterile membrane filters
  • Chromatography Column protection
  • Post Fermentation Clarification
Filter Specification:
Media Cellulose fibres with inorganic filter Aids
End Caps Polypropylene
Cartridge bands Stainlesss Steel
'O' Rings / Gaskets Ethylene Propylene, Silicone, Nepropene, Nitrile, Viton®
Sizes 8" , 12", 16" dia with cells varying from 8 to 16
Operating Conditions
Maximum Diff. Pressure 35 psid (2.5 bar ) @ 140°F (60°C)
Maximum Oper. Temp. 60oC
Sterilization 0.5 to 1 GPM/ft2
